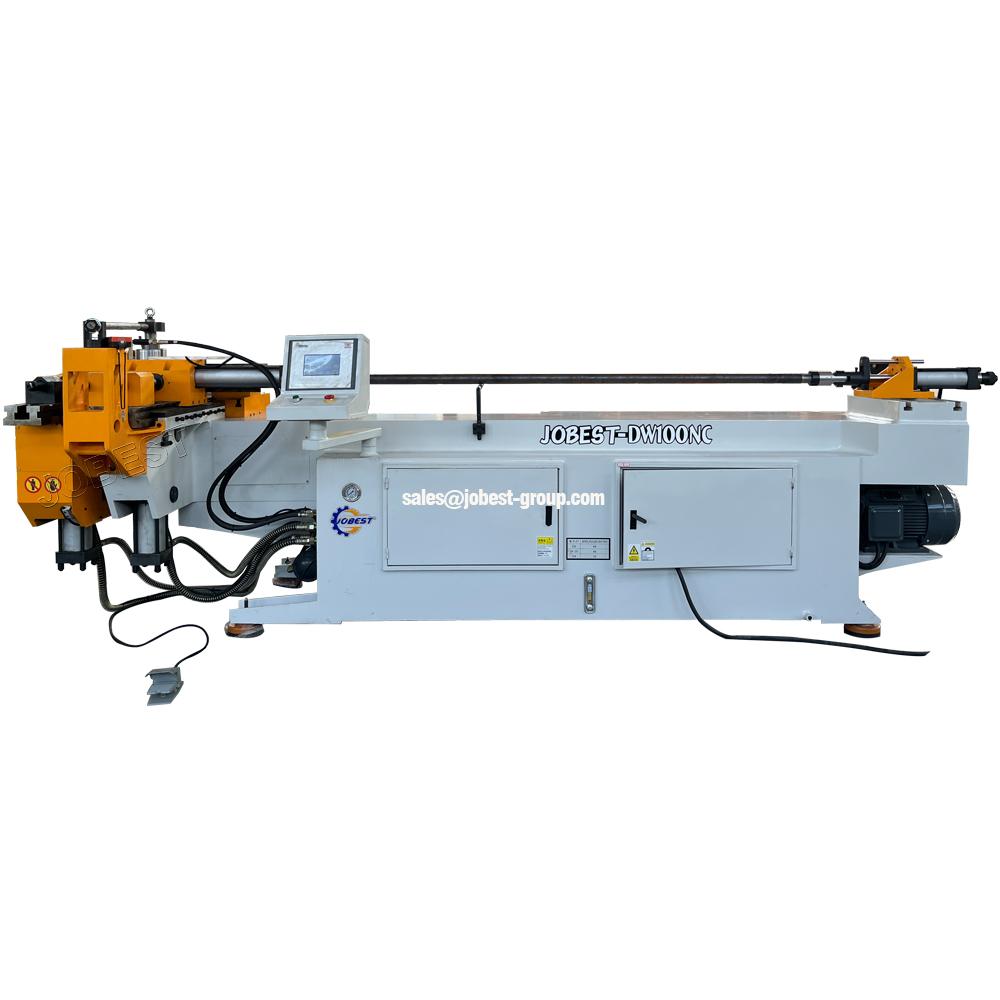

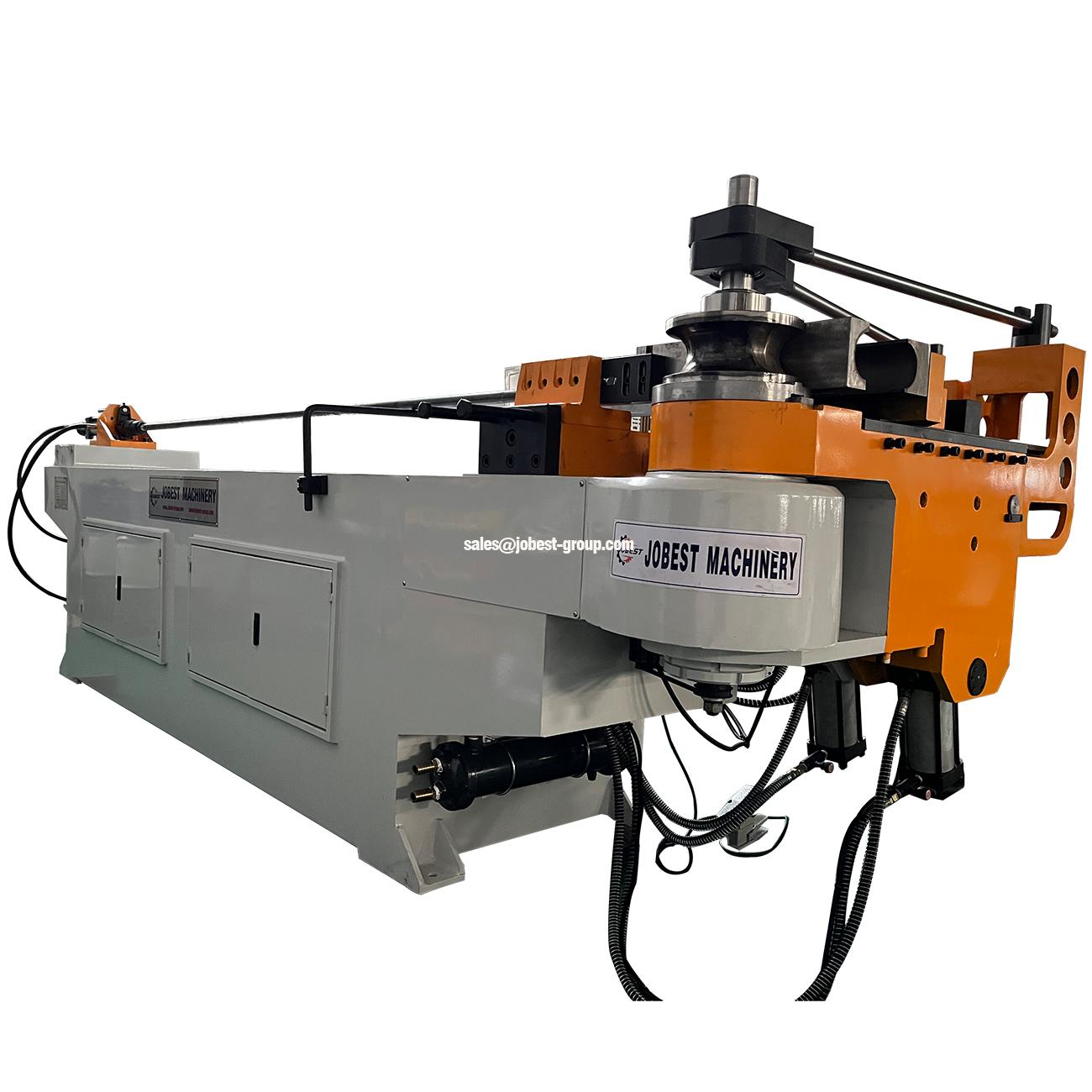

Product Description
1.PLC control, easy to set programs and operate .
2.Slowly returning of mandrel , make good shape and appearance of the angle .
3.Rotating is controlled by servo-motor, more precise .
4.Memory 100 sets records with each record setting 20 auto rotating and bending angles .
5.Moveable control platform with touch-screen , more convenient .
6.Mistakes self-checking on the screen , help to solve problem immediately .
7.Key parts use the imported brands .
8.Hydraulic power, processing more smoothly .
9.Die material use high quality steel, hardness high and long life use, the hardness not below HRC50; dies including bending die, clamping die, crease resistant die, guide die, Wiper Die(Optional), Ball Mandrel(Optional).
Product parameters
|
Main Technical Parameter |
Unit | 18NCB | 28NCB | 38NCB | 50NCB | 63NCB | 75NCB | 89NCB | 115NCB | 130NCB | 168NCB |
|
Max. Bending Capacity |
mm | 18×2 | 28×2 | 38×2 | 50×2 | 63×4 | 75×5 | 89×8 | 115×8 | 130×12 | 168×16 |
|
Bending Radius Region |
mm | 20-150 | 20-180 | 20-200 | 20-250 | 25-350 | 30-350 | 30-450 | 40-550 | 50-650 | 60-850 |
|
Bending Angle Region |
Degree |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
0-190° |
|
Effective Length Over Mandrel |
mm | 2000 | 2000 | 2000 | 2200 | 2500 | 3200 | 3800 | 4500 | 4600 | 4850 |
|
Oil Pressure System Motor |
kw | 2.2 | 2.2 | 4.0 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Max. Pressure | kg/cm | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
|
Machine Dimension |
mm |
2300×55 0×1300 |
2500×650 ×1300 |
2500×700 ×1300 |
3000×700 ×1300 |
3200×750 ×1300 |
3650×1000 ×1400 |
4400×1150 ×1350 |
5800×1500 ×1350 |
6000×1500 ×1350 |
6300×2450 ×1500 |
| Machine Weight | kg | 500 | 600 | 750 | 1220 | 1400 | 2380 | 4500 | 6500 | 11500 | 12000 |
