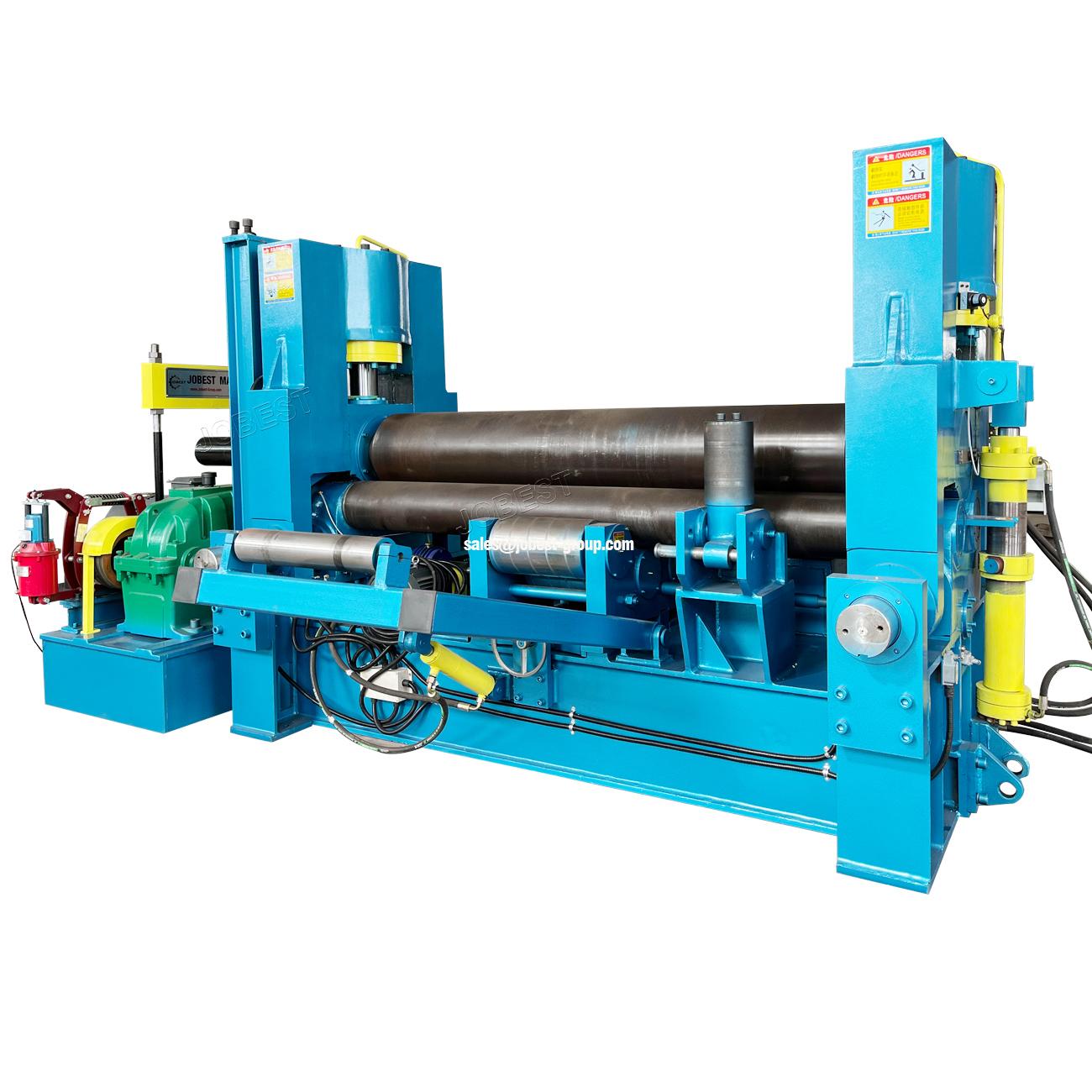

This model device adopts the Japanese technology. It can roll plate to cylinder, cone, U-shape and so on. The up roller of this device can do up and down, right and left move. And all the move actions can show by figure.It with the pre-bending capacity.
|
Model |
Pressure
(Ton) |
Max bending thickness
（mm） |
Max rolling length mm |
Upper roller diameter mm |
Down roller diameter mm |
Rollers distance |
Motor kw |
|||
|
Pre-bending mm |
Max bending mm |
mm |
Driving |
Hydraulic |
Moving |
|||||
|
6x1500 |
25 |
4.8 |
6 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
|
6x2000 |
25 |
4.8 |
6 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
|
6x2500 |
25 |
4.8 |
6 |
2500 |
205 |
135 |
180 |
3 |
2.2 |
0.75 |
|
6x3000 |
37 |
4.8 |
6 |
3000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
8x1500 |
25 |
6.4 |
8 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
|
8x2000 |
25 |
6.4 |
8 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
|
8x2500 |
37 |
6.4 |
8 |
2500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
|
8x3000 |
45 |
6.4 |
8 |
3000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
10x1500 |
37 |
8 |
10 |
1500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
|
10x2000 |
45 |
8 |
10 |
2000 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
|
10x2500 |
45 |
8 |
10 |
2500 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
|
10x3000 |
65 |
8 |
10 |
3000 |
245 |
135 |
180 |
5.5 |
4 |
0.75 |
|
10x4000 |
75 |
8 |
10 |
4000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
|
12x2000 |
65 |
9.6 |
12 |
2000 |
250 |
145 |
200 |
5.5 |
4 |
0.75 |
|
12x2500 |
65 |
9.6 |
12 |
2500 |
255 |
150 |
245 |
5.5 |
4 |
0.75 |
|
12x3000 |
75 |
9.6 |
12 |
3000 |
270 |
150 |
245 |
7.5 |
4 |
1.1 |
|
12x6000 |
100 |
9.6 |
12 |
6000 |
290 |
150 |
245 |
15 |
5.5 |
1.5 |
|
16x2000 |
75 |
12.8 |
16 |
2000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
|
16x2500 |
100 |
12.8 |
16 |
2500 |
270 |
150 |
245 |
15 |
5.5 |
1.5 |
|
16x3200 |
100 |
12.8 |
16 |
3200 |
290 |
150 |
245 |
15 |
5.5 |
1.5 |
|
16x6000 |
190 |
12.8 |
16 |
6000 |
300 |
165 |
270 |
22 |
7.5 |
4 |
|
20x2000 |
100 |
16 |
20 |
2000 |
325 |
165 |
270 |
15 |
5.5 |
1.5 |
|
20x2500 |
130 |
16 |
20 |
2500 |
330 |
180 |
300 |
15 |
5.5 |
1.5 |
|
20x3000 |
160 |
16 |
20 |
3000 |
350 |
180 |
300 |
18.5 |
7.5 |
2.2 |
|
20x4000 |
190 |
16 |
20 |
4000 |
360 |
200 |
330 |
22 |
7.5 |
4 |
|
20x6000 |
380 |
16 |
20 |
6000 |
375 |
200 |
330 |
45 |
22 |
5.5 |
|
25x2000 |
160 |
20 |
25 |
2000 |
330 |
180 |
300 |
18.5 |
7.5 |
2.2 |
|
25x2500 |
190 |
20 |
25 |
2500 |
350 |
180 |
300 |
22 |
7.5 |
4 |
|
25x3000 |
230 |
20 |
25 |
3000 |
360 |
200 |
330 |
30 |
11 |
4 |
|
25x6000 |
320 |
20 |
25 |
6000 |
375 |
200 |
330 |
37 |
15 |
5.5 |
|
30x2000 |
190 |
24 |
30 |
2000 |
430 |
235 |
400 |
22 |
7.5 |
4 |
|
30x2500 |
230 |
24 |
30 |
2500 |
440 |
235 |
380 |
30 |
11 |
4 |
|
30x3000 |
230 |
24 |
30 |
3000 |
450 |
250 |
400 |
30 |
11 |
4 |
|
30x3500 |
270 |
24 |
30 |
3500 |
470 |
250 |
400 |
30 |
11 |
4 |
|
30x4000 |
380 |
24 |
30 |
4000 |
490 |
250 |
400 |
45 |
22 |
5.5 |
|
30x6000 |
540 |
24 |
30 |
6000 |
500 |
260 |
420 |
55 |
22 |
11 |
|
35x2000 |
230 |
28 |
35 |
2000 |
480 |
260 |
420 |
30 |
11 |
4 |
|
35x2500 |
270 |
28 |
35 |
2500 |
490 |
250 |
400 |
30 |
11 |
4 |
|
35x3000 |
380 |
28 |
35 |
3000 |
500 |
275 |
420 |
45 |
22 |
5.5 |
|
35x4000 |
430 |
28 |
35 |
4000 |
520 |
260 |
500 |
55 |
22 |
7.5 |
|
35x6000 |
850 |
28 |
35 |
6000 |
530 |
275 |
500 |
90 |
37 |
15 |
|
40x1500 |
270 |
32 |
40 |
1500 |
540 |
290 |
500 |
30 |
11 |
4 |
|
40x2000 |
380 |
32 |
40 |
2000 |
550 |
275 |
500 |
45 |
22 |
5.5 |
|
40x2500 |
380 |
32 |
40 |
2500 |
560 |
290 |
500 |
45 |
22 |
5.5 |
|
40x3200 |
430 |
32 |
40 |
3200 |
580 |
290 |
500 |
55 |
22 |
7.5 |
|
40x3500 |
540 |
32 |
40 |
3500 |
590 |
340 |
610 |
55 |
22 |
7.5 |
|
40x4000 |
540 |
32 |
40 |
4000 |
630 |
340 |
610 |
55 |
22 |
7.5 |
|
40x6000 |
690 |
32 |
40 |
6000 |
650 |
380 |
700 |
75 |
30 |
15 |
|
50x2000 |
430 |
40 |
50 |
2000 |
630 |
340 |
610 |
55 |
22 |
7.5 |
|
50x2500 |
540 |
40 |
50 |
2500 |
650 |
380 |
700 |
55 |
22 |
7.5 |
|
50x3000 |
540 |
40 |
50 |
3000 |
660 |
360 |
700 |
55 |
22 |
7.5 |
